| General Specifications |
| Size |
20 mm to 90 mm |
| Standard |
BS 6121 |
| Application |
Dry indoor, for use with all types of SWA Cable |
| Function |
Provide mechanical cable retention & electrical wire continuity via armoured wire |
| Finish |
Brass finish, nickel finish, or as specified |
| Operating Temperature |
-80°C to +300°C |
| Accessories |
Matching accessories available like PVC shrouds, lock nuts, earth tags, reducers, adaptors, etc., as per the requirement |

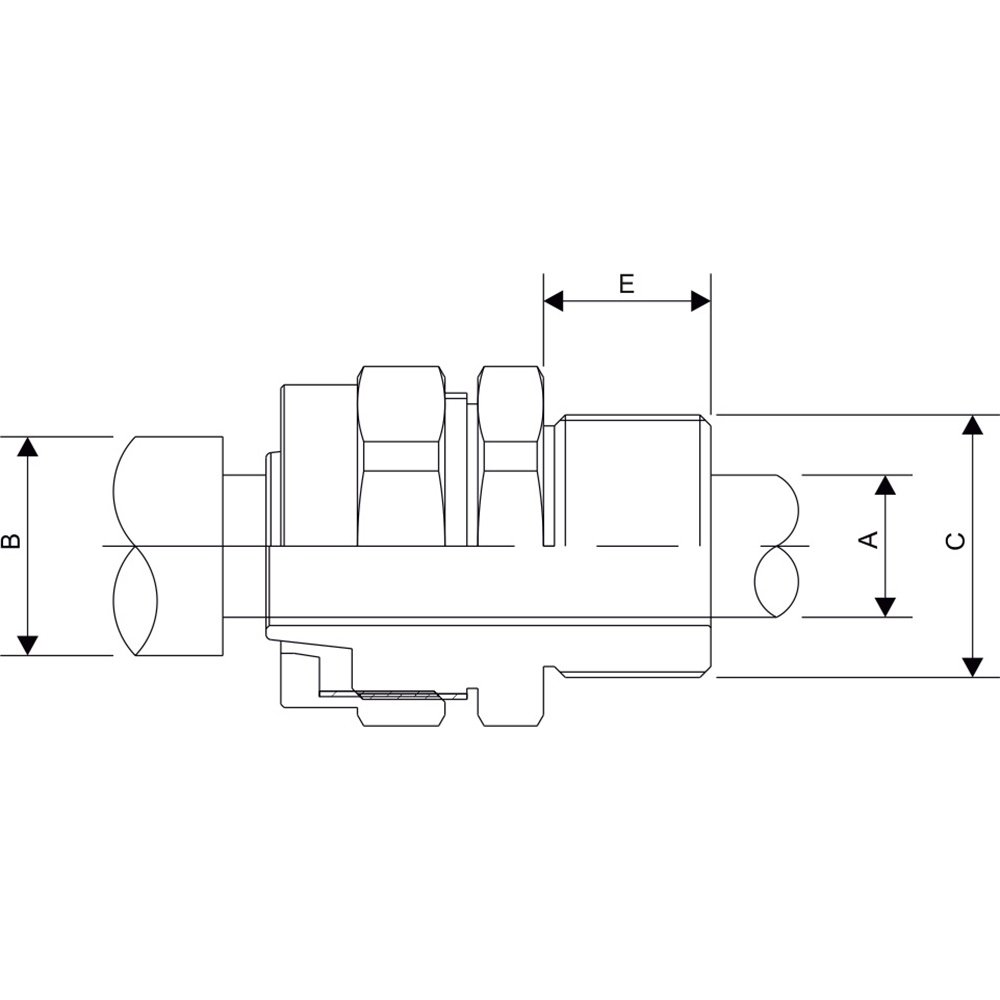

| Technical Specifications |
| Size |
Thread Size 'C' |
Minimum Length of Thread 'D' |
Cable Range |
| MM |
MAX 'A' |
MAX 'B' |
| BW 20S |
20 |
10 |
13 |
15.5 |
| BW 20L |
20 |
10 |
14 |
18.5 |
| BW 25L |
25 |
10 |
20.5 |
26 |
| BW 32L |
32 |
10 |
27 |
33.9 |
| BW 40L |
40 |
15 |
33 |
41.5 |
| BW 50S |
50 |
15 |
38.5 |
47 |
| BW 50L |
50 |
15 |
44 |
52 |
| BW 63S |
63 |
15 |
51 |
59.2 |
| BW 63L |
63 |
15 |
56.5 |
63.5 |
| BW 75S |
75 |
15 |
63 |
74 |
| BW 75L |
75 |
15 |
68.5 |
79.5 |
| BW 90L |
90 |
20 |
80.5 |
91 |
